Europe is becoming a key player in the global navigation satellite system (GNSS) arena. In this series of articles, the European GNSS Agency (GSA) highlights the many success stories happening across all sectors in market uptake, user adoption, innovation and R&D. Here we focus on the agriculture sector and how European GNSS, like EGNOS and Galileo, is bringing the benefits of precision agriculture to the challenging environments of Brazil.

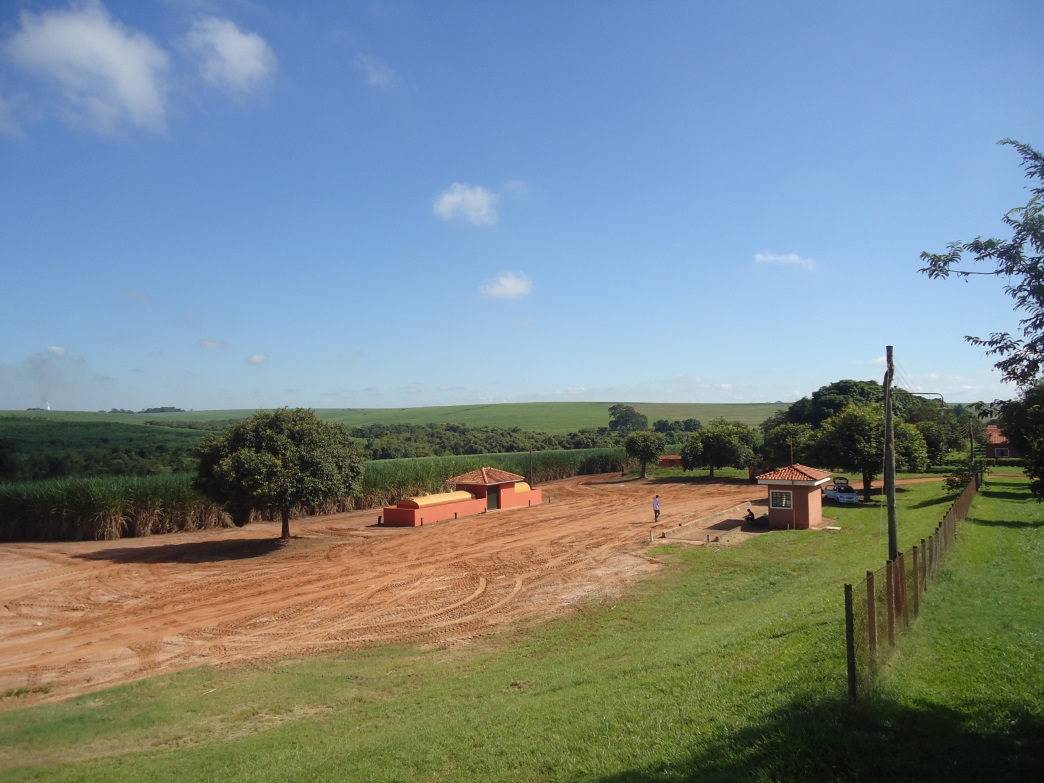

High accuracy GNSS positioning has been at the core of Precision Agriculture (PA) technology General view of Campanelli’s property in Olimpia, São Paulo State.in Brazil – supporting planting, harvesting and overall maintenance of farming areas. For example, the Brazilian ethanol industry is a full-time user PA, relying on such high accuracy GNSS techniques as Real Time Kinematic (RTK).

Although the use of such technology is widespread, there are challenges. The use of GNSS RTK, for instance, is limited due to the high frequency of ionospheric scintillation that, especially in years of high solar activity, systematically disrupts RTK performance during the evening and nights. This results in downtime and, consequently, large financial losses.

Also read: European Space Solutions 2014: European GNSS For Smart Farming

Tackling challenges like this is the objective of the CALIBRA FP7 project and its many local partners. Agro Pastoril Campanelli, one of CALIBRA’s local industrial partners, is an example of an agriculture company that extensively relies on PA technology. Campanelli plays an active role in the project and, within this scope, have provided the necessary infrastructure for the CALIBRA to perform a real world experiment during normal field operations (Figure 1).

A successful experiment

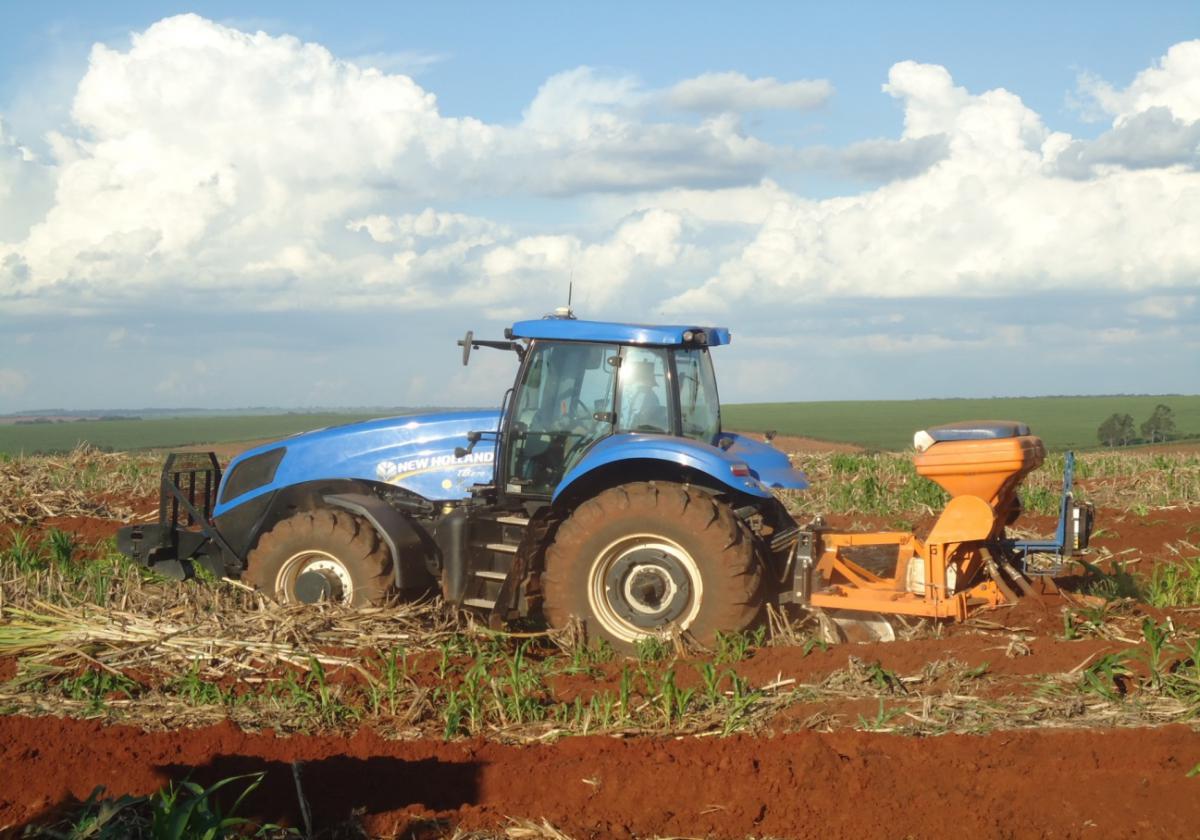

The PA tractor used in the experiments.

GNSS receivers purchased by CALIBRA partners UNESP and ConsultGEL were used during the experiments. One ionospheric scintillation monitor receiver (ISMR) unit, the Septentrio PolaRxS, was set up to monitor the ionosphere, while an Altus APS3 receiver was installed as a RTK reference station. A number of RTK units were mounted in the PA tractor (figure 2) for performance evaluation.

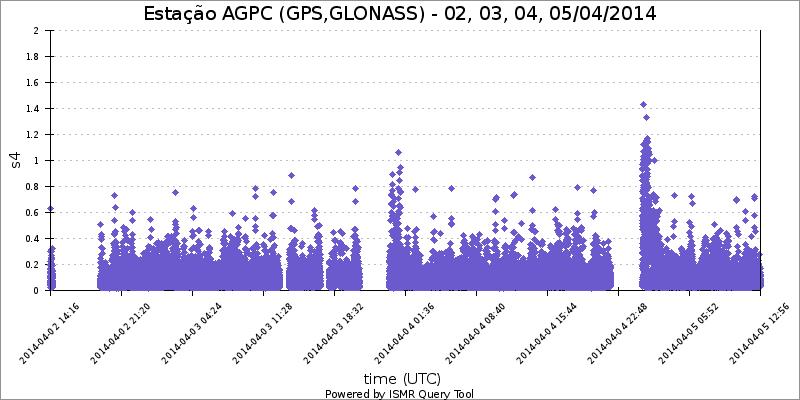

S4 index collected during the experiment, obtained through the CALIBRA project ISMR query tool (is-cigala-calibra.fct.unesp.br), shows the level of scintillation prevalent during the experiment.

The experiments were conducted during the first week of April 2014.

At the time of writing, data has been stored and made available to project partners for analysis. Results will be disseminated via the project website, relevant events and sector publications.
