GIPSIE® (from TeleOrbit)
Summary
- Tool:
- GIPSIE® GNSS Multi-system Performance Simulation Environment
- Short Description:
The software-based MGSE© GIPSIE® SIMULATION UNIT consists of two modules, the satellite constellation simulator (SCS) and the intermediate frequency simulator (IFS). While the SCS simulates the satellite orbits, by using a sophisticated orbit integrator, including modelling of environmental parameters like satellite clocks, transmit power, antenna patterns, ionosphere and troposphere, the IFS generates digital intermediate frequency signals including the simulation of a user definable radio frequency front-end (RFFE).
Via the MGSE© REPLAYING UNIT the software generated signals or recorded live data can be streamed into the receiver’s baseband processing chain or up-converted to RF to support development, test, verification, validation, qualification and certification.
MGSE© GIPSIE® SIMULATION UNIT SUBSYSTEMS:
-
MGSE© GIPSIE® SIMULATION UNIT: Technology licensed by TeleConsult Austria GmbH
-
MGSE© GTEC© High Performance Laptop (optional)
-
- Version:
- 03.00
- Category:
- [RF Signal generator]
- [Signal propagation simulator]
- Conditions of Access:
- Buy
- Location:
- Not fixed
- Coordinates:
- Not fixed
- Website:
- https://teleorbit.eu/en/satnav/gipsie/
- Status:
- Operational
- How to get it:
Via TeleOrbit GmbH, Nuremberg

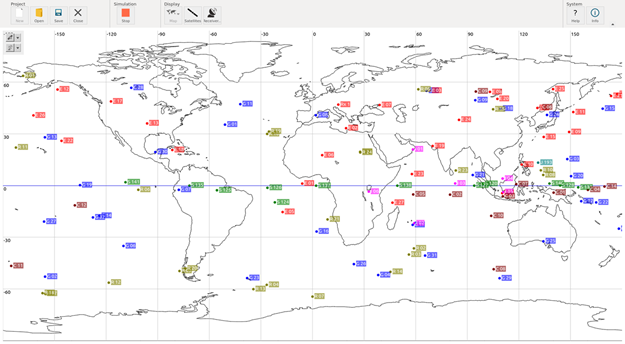

- Image:
-
Specifications
- Supported GNSS signals:
- GPS (SPS)
- GPS (PPS)
- GLONASS
- Galileo (OS, SoL, CS)
- Galileo PRS
- Supported other signals:
- N/A
- Supported frequencies:
- L1
- L2
- L2C
- L5
- E1/L1
- E5a
- E5b
- E6
- Target users:
- Technology suppliers, developers or researchers
- Receiver (module or device) suppliers
- Application, Service or Terminal suppliers
- Environment of uses:
- Open Sky
- Urban
- Rural vehicle user
- Fixed user
Contact
- Provider:
- TeleOrbit GmbH
- Jagdstr. 20, D-90419 Nuremberg, Germany
- https://teleorbit.eu/en
- POC Name:
- Mr Jürgen Seybold; +49-160 820 6957; jseybold@teleorbit.eu
Other Information
- Costs:
Configuration dependent, please contact TeleOrbit for a quotation
- References:
TOG_MGSE-SIM_DataSheet_V2.5U (unclassified):
https://drive.google.com/file/d/1DQwW17QPXr-LmZbLQ4nc-3GceVlG4gKV/view?usp=sharing
TOG_MGSE-SIM_DataSheet_V2.3C (classified):
https://drive.google.com/file/d/1bDQov0fLekbsLZ9ND5ZszFZA_T8NEuA-/view?usp=sharing
