A group of Canadian scientists at the University of New Brunswick has become the first to make use of Galileo’s High Accuracy Service (HAS) in Antarctica to create ultra-precise 3D maps of underwater terrain in a place with no RTK networks or Internet.

The first all-Canadian Antarctic research expedition has successfully surveyed both coastal and oceanic sites and mapped seafloor in Antarctica using Europe’s Galileo High Accuracy Service (HAS) and the Eos Positioning Systems® Arrow Gold+™ GNSS receiver.


During a month-long mission aboard the HMCS Margaret Brooke, a small Unmanned Surface Vessel (USV) was deployed across the icy waters of the South Shetland Islands. With no Real-Time Kinematic (RTK) infrastructure or Internet to rely on, the team turned to Galileo HAS (the EU free satellite-based PPP correction service) and the Arrow Gold+ to guide the USV with pinpoint accuracy.

Unmanned Surface Vessel (USV) deployed in the Antarctica
Unmanned Surface Vessel (USV) deployed in the Antarctica (Photo credit: Ocean Mapping Group)

The result? High-resolution, 3D maps of underwater surfaces

The GNSS receiver delivered real-time (no post processing) positions with estimated accuracies of about 10 centimetres horizontal and 15–20 centimetres vertical, both accuracies with 1 sigma RMS (68%) and achieved solely through GNSS. This key innovation for bathymetric surveys in remote terrain allowed high-resolution, 3D maps of underwater features like the volcanic caldera of Deception Island.

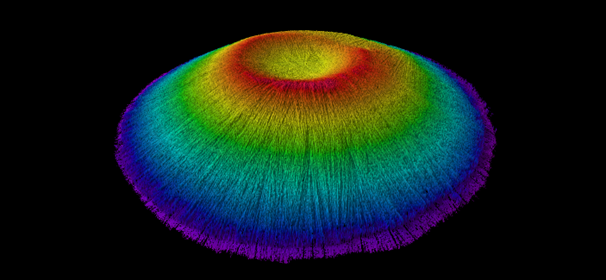

Mini volcano on the ocean floor inside the Deception Island caldera, mapped with just sonar and IMU data
Mini volcano on the ocean floor inside the Deception Island caldera, mapped with just sonar and IMU data (Photo credit: Ocean Mapping Group)

By adding high-accuracy locations with an average accuracy of 10-20 centimetres horizontal and vertical, the team was able to accurately georeference and further refine the detail of the bathymetry for their map inside the underwater Deception Island caldera.

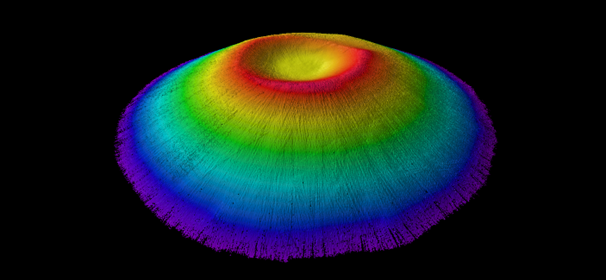

Mini volcano on the ocean floor inside the Deception Island caldera, mapped adding Galileo HAS
Mini volcano on the ocean floor inside the Deception Island caldera, mapped adding Galileo HAS (Photo credit: Ocean Mapping Group)

When asked about any potential challenges they faced, Ocean Mapping Group research scientist Kevin Wilcox, who piloted the USV, commented “The convergence time typically ranged from 30-40 minutes. While it wasn’t as consistent as what you might get elsewhere, 10 to 20 centimetres was quite good all things considered. After all, you are at the bottom of the Earth!”.

About Galileo

Galileo, the EU´s Global Navigation Satellite System (GNSS), provides improved navigation, positioning and timing information. More than 4 billion users are already benefitting from Galileo.
The Galileo Programme is owned by the EU. The European Commission, as the Programme Manager, oversees the implementation of all activities. EUSPA is responsible for the operational management of the services, ensuring that they are delivered with the defined performance and without interruption. Galileo's system design and system evolution are entrusted by EUSPA to ESA .
