N7609C (from Keysight)

Summary

Tool:
N7609C (Global Navigation Satellite Systems (GNSS) Real-Time Signal Creation and Offline Playback)
Short Description:

Real-time creation of multi-satellite signals for GPS, GLONASS constellations (L1 with C/A code), Beidou (Compass), SBAS/QZSS with up to 40 channels, and Galileo (E1) with up to 16 channels for line-of-sight and multipath signalsStationary or moving receivers for up to 24 hours using stored scenario files. Create and edit custom scenario files or use continuous scenario generation mode. Add impairments such as multipath, pseudo-range error, and CW interference signals in real-time while the signal is playing.

Version:
N/A
Category:
[Software signal generator]

Conditions of Access:
Buy
Location:
N/A
Coordinates:
N/A
Website:
https://www.keysight.com/us/en/software/application-sw/signal-studio-software/global-navigation-satellite-systems--gnss--real-time-signal-crea0.html
Status:
Operational
How to get it:

Keysight products are offered on the market, directly from Keysight or through partners and resellers all over the world. Two options are available: purchasing or leasing.

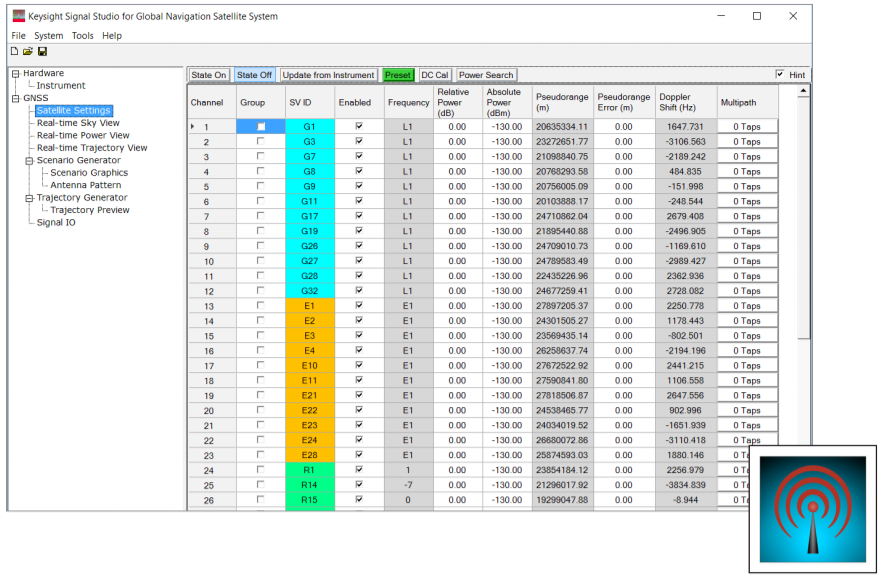

Image:

Specifications

Supported GNSS signals:
GPS (SPS)

GPS (PPS)

GLONASS

Galileo (OS, SoL, CS)

Supported other signals:
N/A
Supported frequencies:
L1

L2

L2C

L5

E1/L1

E5a

E5b

E6

Target users:
Technology suppliers, developers or researchers

Environment of uses:
Open Sky

Urban

Rural pedestrian user

Rural vehicle user

Fixed user

Aeronautical user

Contact

Provider:
Keysight (Keysight Technologies)

United States

https://www.keysight.com/
POC Name:
Mr. Giovanni D’Amore

Other Information

Costs:

N7609C GNSS signal studio: around 25 K€ (perpetual license) around 7 K€ (12 month license)

Prices depend on the user country.

References:

Signal Studio for Global Navigation Satellite Systems (GNSS)

Technical overview

http://literature.cdn.keysight.com/litweb/pdf/5992-2740EN.pdf
