MGSE© (from TeleOrbit)
Summary
- Tool:
- MGSE© Mutli-GNSS Simulation & Test Environment
- Short Description:
MGSE© creates a GNSS simulation environment that provides the possibility and flexibility to use synthetically generated GNSS data and recorded real-world samples – both exactly reproducible. MGSE© is capable of providing both digital IF GNSS signals as well as analogue RF multi-band data in real-time to receivers / components under test. It is possible either to synthetically generate data using the simulation modules, which are able to simulate arbitrary scenarios with different settings or effects, or to record real-world data. MGSE© is addressing the testing of complex multi-system, multi-signal devices and other receivers used in an ever-increasing range of commercial and governmental applications.
MGSE© SUBSYSTEMS:
-
MGSE© SIMULATION UNIT GIPSIE®: Software licensed by TeleConsult Austria GmbH
-
MGSE© RECORDING UNIT: Technology licensed by Fraunhofer IIS, Germany
-
MGSE© REPLAYING UNIT: Technology licensed by Fraunhofer IIS, Germany
-
- Version:
- 02.00
- Category:
- [Signal propagation simulator]
- [Test bench for receivers]
- [Other]
- Conditions of Access:
- Buy
- Location:
- Not fixed
- Coordinates:
- Not fixed
- Website:
- https://teleorbit.eu/en/satnav/mgse/
- Status:
- Operational
- How to get it:
Via TeleOrbit GmbH, Nuremberg

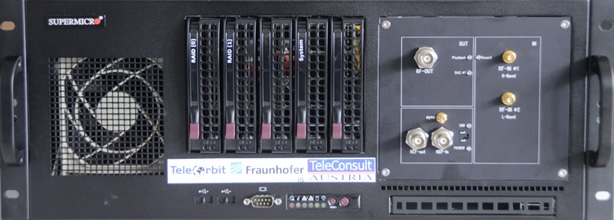

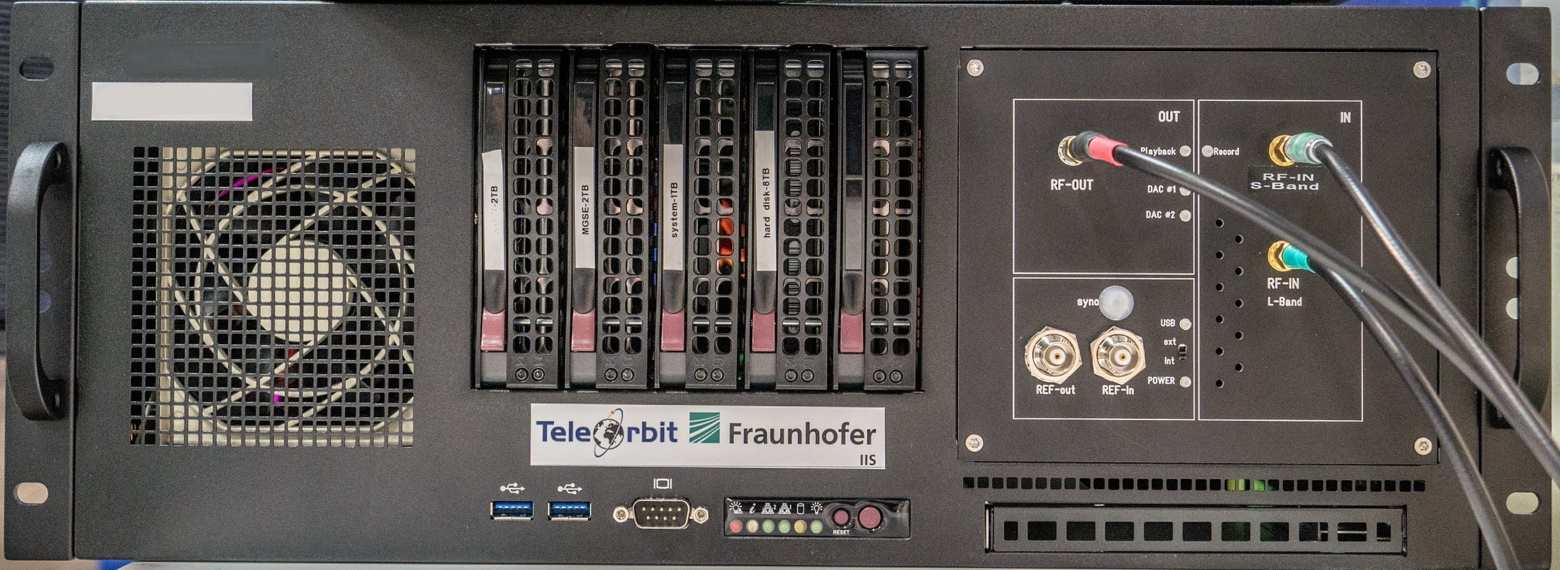

- Image:
-
Specifications
- Supported GNSS signals:
- GPS (SPS)
- GPS (PPS)
- GLONASS
- Galileo (OS, SoL, CS)
- Galileo PRS
- Supported other signals:
- N/A
- Supported frequencies:
- L1
- L2
- L2C
- L5
- E1/L1
- E5a
- E5b
- E6
- Target users:
- Technology suppliers, developers or researchers
- Receiver (module or device) suppliers
- Application, Service or Terminal suppliers
- Environment of uses:
- Open Sky
- Urban
- Rural vehicle user
- Fixed user
Contact
- Provider:
- TeleOrbit GmbH
- Jagdstr. 20, D-90419 Nuremberg, Germany
- https://teleorbit.eu/en
- POC Name:
- Mr Jürgen Seybold; +49-160 820 6957; jseybold@teleorbit.eu
Other Information
- Costs:
Configuration dependent, please contact TeleOrbit for a quotation
- References:
TOG_MGSE_DataSheet:
https://drive.google.com/file/d/1QQpJJKLGqyFvPVqUHLB5QBc66appA5Ni/view?usp=sharing
PID5302127_ENC_Ruegamer-Seybold; Presentation during ENC 2018 of results of a multi-GNSS measurement campaign in Hanoi using the MGSE system
https://drive.google.com/file/d/1X3VihGWouBffrSw3QOPUvT9Hj5YLa0DJ/view?usp=sharing
