MASTER (from DLR IKN)

Summary
Tool Name
MASTER (Multi-output Advanced Signal Test Environment for Receivers)
Short Description

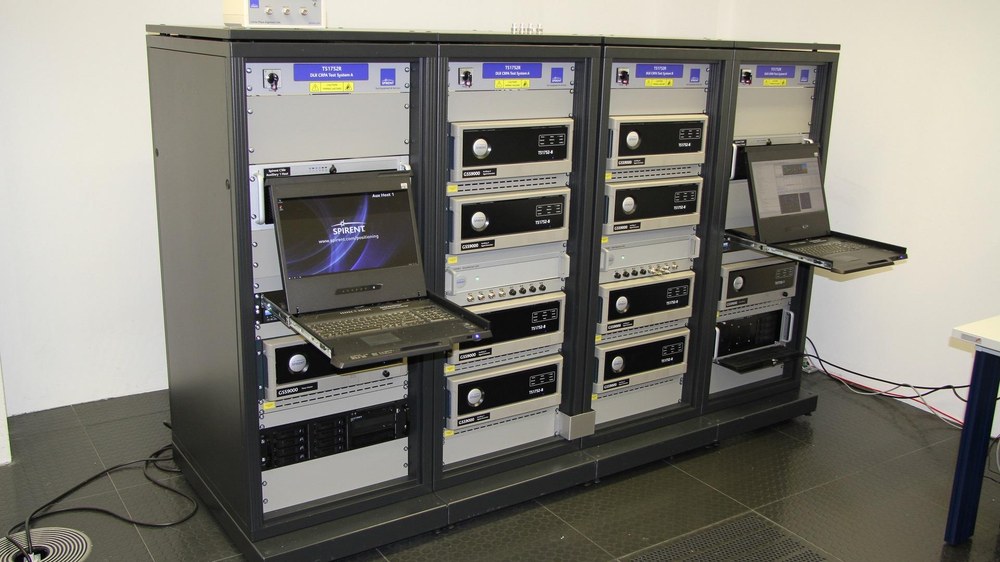

A simulation environment with the focus on testing multi-antenna GNSS receivers under challenging signal conditions including GNSS jamming and spoofing. The central element of the facility is a multi-output GNSS Constellation Simulator composed of eight simulation units of the GSS9000 series of Spirent. The simulator can therefore support scenarios including up to eight independent antennas and users, with an individual RF signal generated for every simulated antenna. In case of testing a GNSS receiver with a controlled reception pattern antenna (CRPA), the antennas are arranged in an array configuration that is carried by a user platform. The GSS9000 units are precisely phase-aligned, which enables to simulate the directions of arrival of all generated signals. Additionally, each GSS9000 unit is equipped with two high-power signal cards used to generate strong jamming signals with up to 100 dB of interference-to signal ratio. The facility also includes other pieces of measurement equipment which can be used to support the simulations: auxiliary RF signal generator, spectrum analyser, multi-channel record and playback device, reference GNSS receivers etc. All these features make the MASTER simulation environment a powerful tool for testing multi-antenna and CRPA receivers under controlled and reproducible signal conditions.

Version
N/A
Category
RF Signal generator
Test bench for receivers
Conditions of Access
Rent
Location
Oberpfaffenhofen, appr. 25 km south-west from Munich, Bavaria, Germany
Coordinates
48° 5.090'N, 11° 16.670'E
Website
https://www.dlr.de/en/research-and-transfer/research-infrastructure/master-en
Status
Operational
How to get it

The simulation environment can be booked on daily basis. The book price includes on-site engineering support. Additional efforts and costs may be required for preparing the simulations.

Specifications
Supported GNSS Signals
GPS (SPS)
GPS (PPS)
GLONASS
Galileo (OS, SoL, CS)
Supported frequencies
L1
L2
L2C
L5
E1/L1
E5a
E5b
E6
Target users
Technology suppliers, developers or researchers
Receiver (module or device) suppliers
Environment of uses
Open Sky
Urban
Fixed user
Aeronautical user
Contact
Provider name
German Aerospace Centre (DLR), Institute of Communications and Navigation
Provider address
Muenchner Str. 20, 82230 Wessling-Oberpfaffenhofen, Germany
Provider website
http://www.dlr.de/kn
POC Name
Dr. Andriy Konovaltsev
Other Information
Costs

On request.

References

Please see the short description of the facility at https://www.dlr.de/en/research-and-transfer/research-infrastructure/master-en


The information about Spirent GNSS Constellation simulators of GSS9000 series is available at https://www.spirent.com/assets/u/gss9000-series-brochure . The GNSS simulator of the MASTER facility is a tailored solution based on the GSS9000 units.
