LabSat 3 Wideband and SatGen Software

Summary
Tool Name
LabSat 3 Wideband and SatGen Software
Short Description

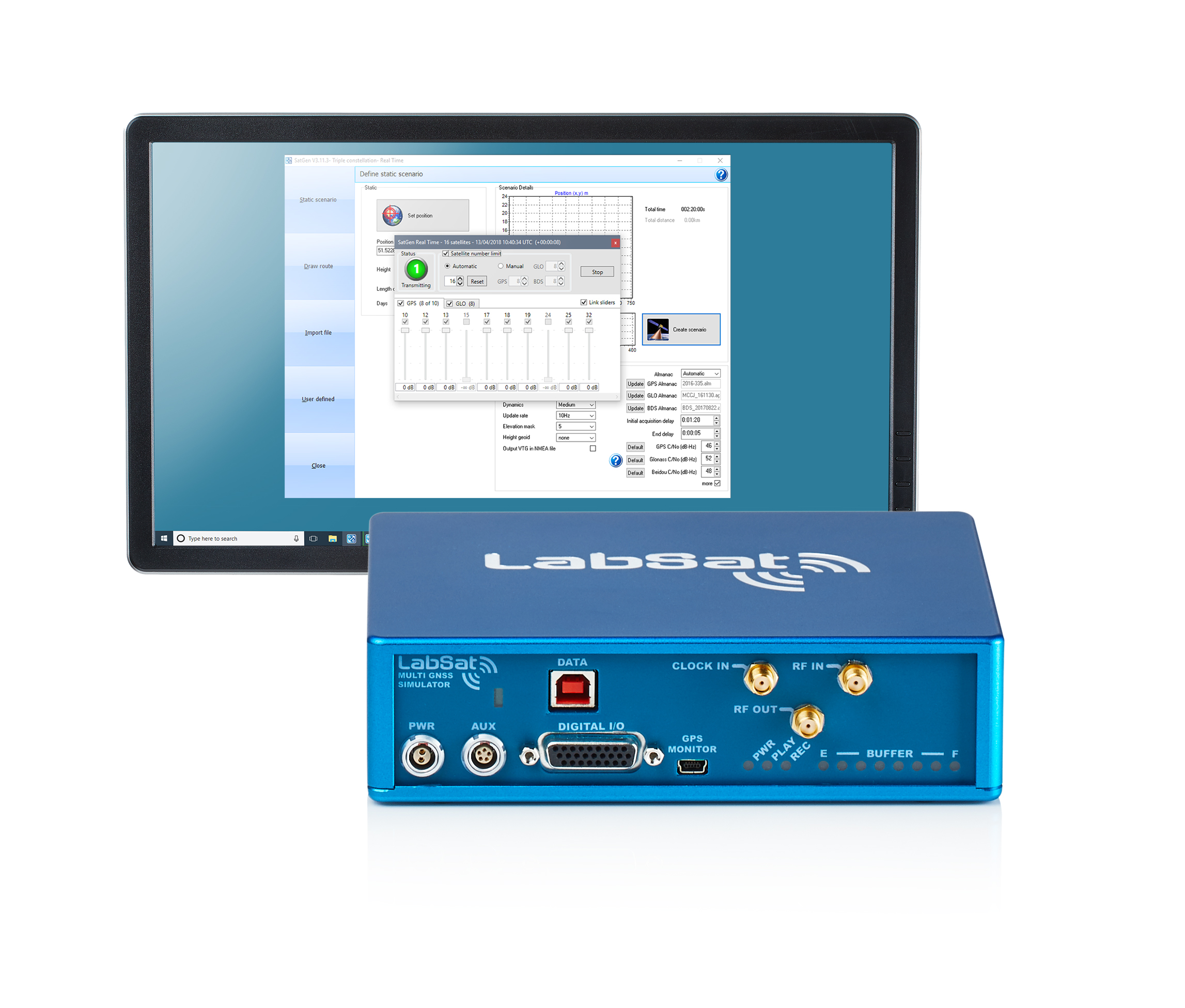

LabSat 3 Wideband

The LabSat 3 Wideband is a compact yet powerful multi-constellation and multi-frequency GNSS simulator testing solution. The easy to use, one touch record and replay function provides an efficient way to test and develop GNSS-based technology without the cost and limitations of live-sky signals.

LabSat 3 Wideband can record and replay up to three different channels at 56MHz bandwidth across all major constellations and signals including Galileo, GPS, GLONAS, BeiDou, QZSS and SBAS.

With a removeable SSD (up to 7TB), two-hour runtime provided by an internal battery, and a lightweight and portable design, the LabSat 3 Wideband is ideal for field testing, development testing and production line testing in any environment.

SatGen Signal Simulation Software

SatGen software allows users to quickly create bespoke, accurate scenarios with their own time, location and trajectory, that can be replayed via a LabSat GNSS Simulator.

The latest version of SatGen can be used to create a single scenario containing all the upper and lower L-Band signals for Galileo, GPS, GLONASS and BeiDou.

Version
N/A
Category
RF Signal generator
Software signal generator
Field test bed
Signal recorder
Signal propagation simulator
Conditions of Access
Buy
Location
Buckingham, United Kingdom (tool location is not fixed)
Coordinates
51.9999, -0.988061
Website
LabSat 3 Wideband: https://www.labsat.co.uk/index.php/en/products/labsat-3-wideband SatGen: https://www.labsat.co.uk/index.php/en/products/satgen-simulator-software
Status
Operational
How to get it

Complete online enquiry form: https://www.labsat.co.uk/index.php/en/quote-request

Specifications
Supported GNSS Signals
GPS (SPS)
GPS (PPS)
GLONASS
Galileo (OS, SoL, CS)
Supported other signals
WiFi
Other
Supported frequencies
L1
L2
L2C
L5
E1/L1
E5a
E5b
E6
Target users
Technology suppliers, developers or researchers
Receiver (module or device) suppliers
Application, Service or Terminal suppliers
Environment of uses
Urban
Rural pedestrian user
Rural vehicle user
Fixed user
Aeronautical user
Contact
Provider name
LabSat
Provider address
Buckingham, United Kingdom
Provider website
www.labsat.co.uk
POC Name
Mr Graham Mackie
Other Information
Costs

POA

References

Brochure (https://www.labsat.co.uk/downloads/product-info/Flyers/LabSat-3-Wideband-Flyer.pdf)

14 Day Free Trial (link to: https://www.labsat.co.uk/index.php/en/labsat-14-day-trial)
