GTEC© (from TeleOrbit)

Summary

Tool:
GTEC© GNSS Radio Frequency Front-End
Short Description:

The MGSE© GTEC© MOBILE RECORDING UNIT is a high-end GNSS radio frequency front-end which offers up to 3 simultaneously sampled radio frequency (RF) reception chains. Each RF chain can be independently pre-configured to Galileo, GPS, GLONASS, BeiDou, QZSS, NavIC, and SBAS. Bandwidth (up to 68MHz), bitwidth (up to 2x8 bit (complex)), sampling rate (up to 81 MHz), intermediate frequency (default: zero IF) can be individually selected. Moreover, several GTEC units can be synchronized, also supporting multiple antenna inputs.



MGSE© GTEC© MOBILE RECORDING UNIT SUBSYSTEMS:

  • MGSE© GTEC© RECORDING UNIT: Technology licensed by Fraunhofer IIS, Germany

  • MGSE© GTEC© High Performance Laptop (optional)

Version:
03.00
Category:
[Hardware receiver or front-end]

[Other]

Conditions of Access:
Buy
Location:
Not fixed
Coordinates:
Not fixed
Website:
https://teleorbit.eu/en/satnav/gtec/
Status:
Operational
How to get it:

Via TeleOrbit GmbH, Nuremberg

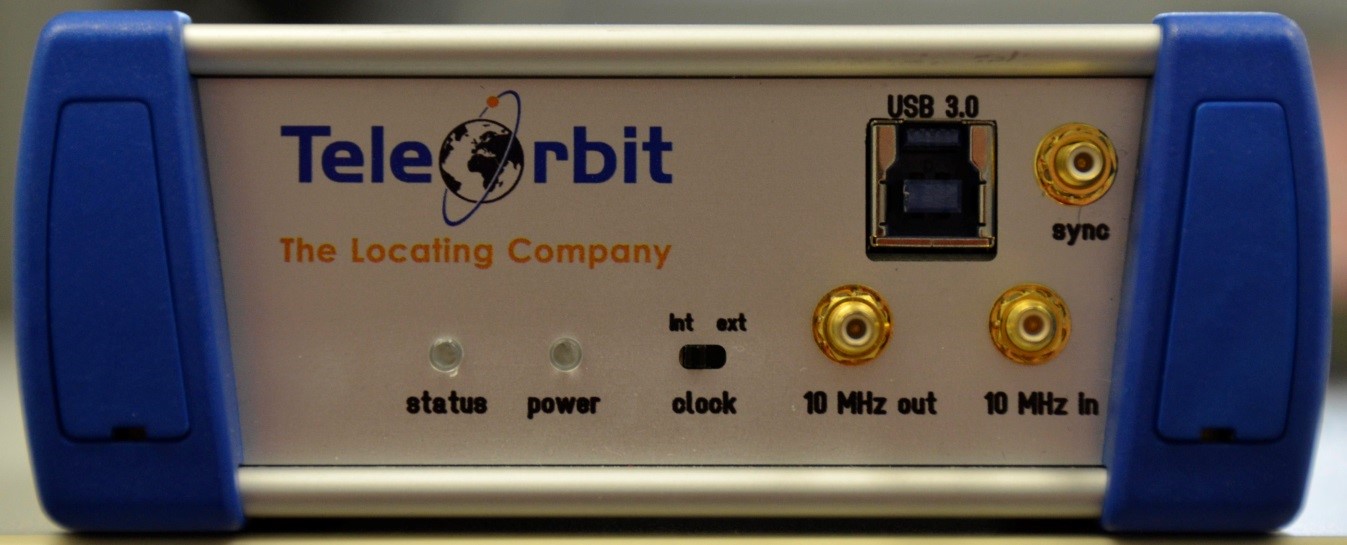

Image:

Specifications

Supported GNSS signals:
GPS (SPS)

GPS (PPS)

GLONASS

Galileo (OS, SoL, CS)

Galileo PRS

Supported other signals:
N/A
Supported frequencies:
L1

L2

L2C

L5

E1/L1

E5a

E5b

E6

Target users:
Technology suppliers, developers or researchers

Receiver (module or device) suppliers

Application, Service or Terminal suppliers

Environment of uses:
Open Sky

Urban

Rural pedestrian user

Rural vehicle user

Fixed user

Contact

Provider:
TeleOrbit GmbH

Jagdstr. 20, D-90419 Nuremberg, Germany

https://teleorbit.eu/en
POC Name:
Mr Jürgen Seybold; +49-160 820 6957; jseybold@teleorbit.eu

Other Information

Costs:

Configuration dependent, please contact TeleOrbit for a quotation

References:

TOG_MGSE-REC_DataSheet:



https://drive.google.com/file/d/1t6NFbcxRLpmms2HfRL1PnbmnwvfTlG8W/view?usp=sharing



PID5302127_ENC_Ruegamer-Seybold; Presentation during ENC 2018 of results of a multi-GNSS measurement campaign in Hanoi using the MGSE system:



https://drive.google.com/file/d/1X3VihGWouBffrSw3QOPUvT9Hj5YLa0DJ/view?usp=sharing
