GSS6450 (from Spirent)

Summary

Tool:
GSS6450
Short Description:

The GSS6450 from Spirent takes RF record & playback systems to a whole new level of performance and flexibility. Battery powered and housed in a small and portable case, the GSS6450 can record any RF in the 100MHz-6,000MHz frequency range - including any current GNSS signal, 2.4GHz and 5GHz WiFi, and Cellular. With the capability to record at up to 16 bits ‘I’ & 16 bits ‘Q’ and the flexibility to select any 80MHz band within the frequency range.

Version:
N/A
Category:
[Signal recorder]

Conditions of Access:
Buy
Location:
N/A
Coordinates:
N/A
Website:
https://www.spirent.com/Products/GSS6450
Status:
Operational
How to get it:

Available for purchase direct from Spirent.

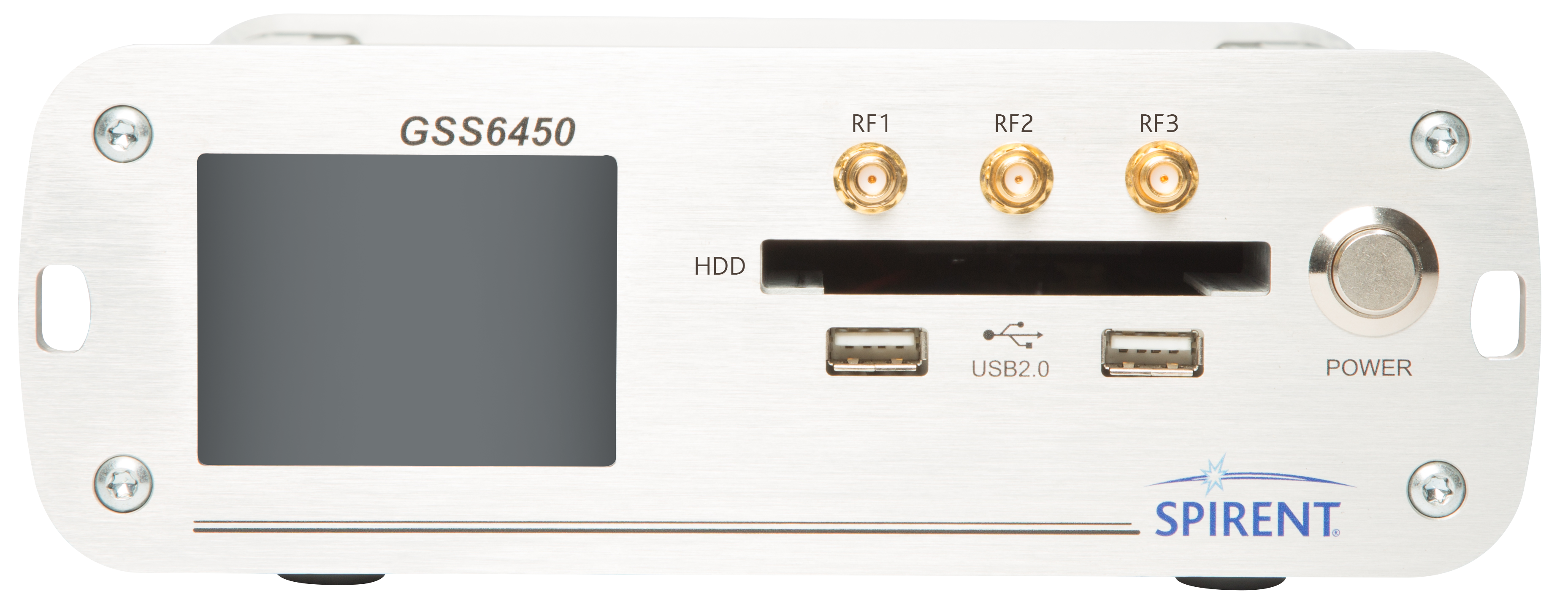

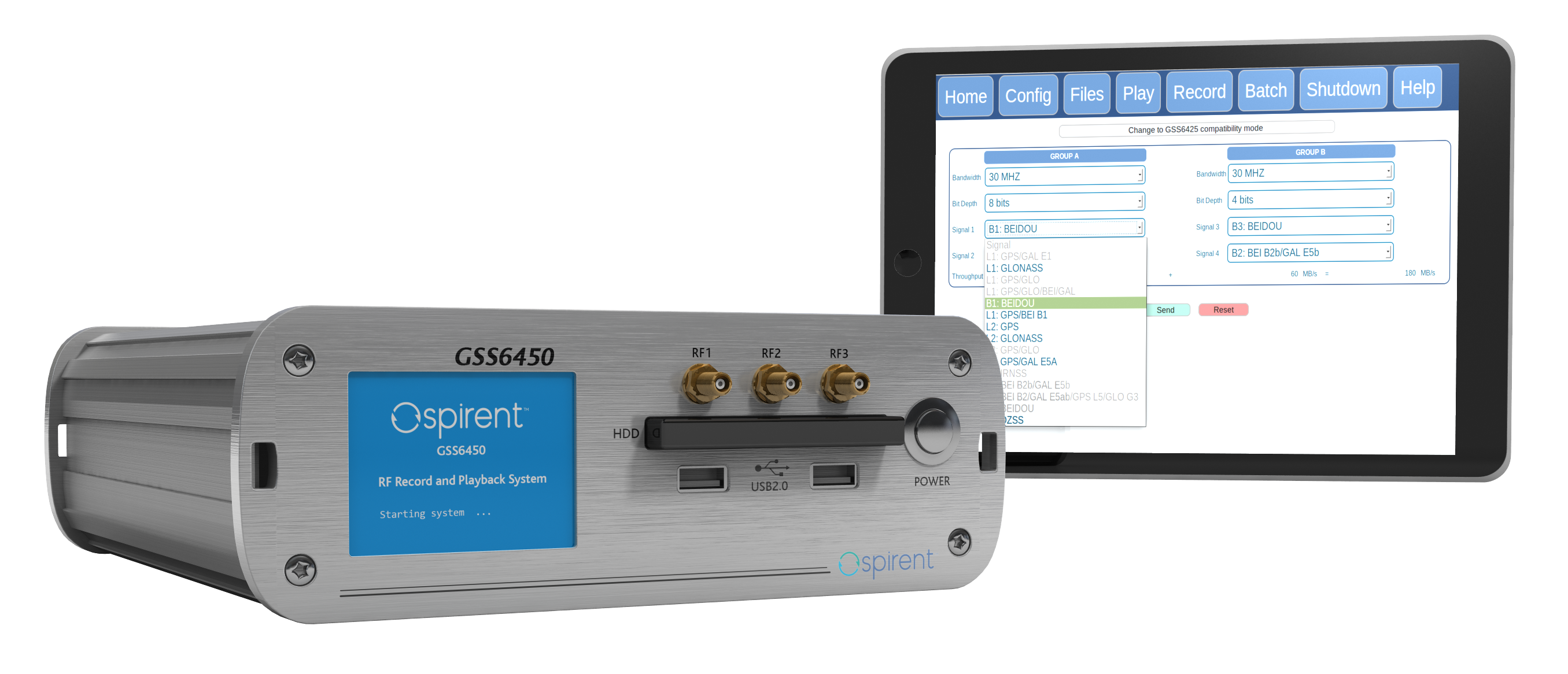

Image:

Specifications

Supported GNSS signals:
GPS (SPS)

GPS (PPS)

GLONASS

Galileo (OS, SoL, CS)

Supported other signals:
Cellular (Cell ID, TDOA, etc)

WiFi

Other

Supported frequencies:
L1

L2

L2C

L5

E1/L1

E5a

E5b

E6

Target users:
Technology suppliers, developers or researchers

Receiver (module or device) suppliers

Application, Service or Terminal suppliers

Environment of uses:
Open Sky

Urban

Rural pedestrian user

Rural vehicle user

Fixed user

Aeronautical user

Contact

Provider:
Spirent Communications plc

Crawley, UK

https://www.spirent.com/Solutions/Position-Navigation-Timing
POC Name:
Mr. Romain Zimmermann (romain.zimmermann@spirent.com)

Other Information

Costs:

Prices vary according to configuration – contact Spirent for a quote.

References:

https://www.spirent.com/-/media/Datasheets/Positioning/GSS6450.pdf

Updated: Sep 20, 2018
