GRANADA (from DEIMOS)
Summary
- Tool:
- GRANADA (Galileo Receiver ANAlysis and Design Application)
- Short Description:
GRANADA is a tool for the analysis and development of GNSS receiver algorithms. It was conceived as a modular and configurable environment for education, R&D, and testing purposes. It is composed of two main modules:
• The GRANADA Bit-True Simulator, an open tool which recreates the Galileo/GPS signal-in-space and the receiver signal processing chain using a sampled-based simulation approach;
• The GRANADA Environment & Navigation Simulator, which is a Galileo/GPS raw data generator and navigation analysis tool.
- Version:
- GRANADA Bit-True Simulator: 3.0; GRANADA Environment & Navigation Simulator: 1.3
- Category:
- [Service volume simulator]
- Conditions of Access:
- Buy
- Location:
- Tres Cantos, Spain (tool location is not fixed)
- Coordinates:
- 40.5991, -3.71226
- Website:
- http://granada.deimos-space.com/
- Status:
- Operational
- How to get it:
Contact DEIMOS Space at granada@deimos-space.com for purchasing information.

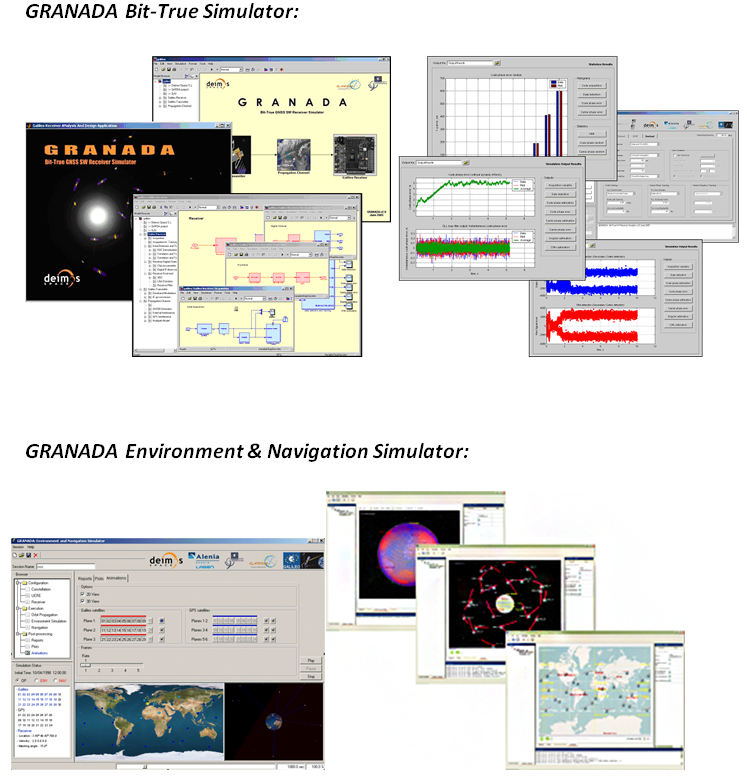

- Image:
-
Specifications
- Supported GNSS signals:
- GPS (SPS)
- Galileo (OS, SoL, CS)
- Supported other signals:
- N/A
- Supported frequencies:
- L1
- L2
- L2C
- L5
- E1/L1
- E5a
- E5b
- E6
- Target users:
- Technology suppliers, developers or researchers
- Receiver (module or device) suppliers
- Application, Service or Terminal suppliers
- Environment of uses:
- Open Sky
- Urban
- Rural pedestrian user
- Rural vehicle user
- Fixed user
- Aeronautical user
Contact
- Provider:
- DEIMOS (DEIMOS Space)
- Tres Cantos, Spain
- http://www.deimos-space.com
- POC Name:
- Mr. João S. Silva
Other Information
- Costs:
Contact Elecnor DEIMOS at granada@deimos-space.com for additional information to acquire the GRANADA tools.
- References:
PRODUCT WEBPAGE: http://granada.deimos-space.com/
-
GRANADA Bit-True Simulator: http://granada.deimos-space.com/bit-true.html
-
GRANADA Environment & Navigation Simulator: http://granada.deimos-space.com/EN_Sim.html
DATASHEET:
-
GRANADA Environment & Navigation Simulator: http://granada.deimos-space.com/pdf/DEIMOS_Granada_Environment.pdf
VIDEO DEMO:
-
GRANADA Bit-True Simulator: https://www.youtube.com/watch?v=UIuPVdIfGTs
-
GRANADA Environment & Navigation Simulator: https://www.youtube.com/watch?v=mWKr6emOz64
-
