GOOSE© (from TeleOrbit)
Summary
- Tool:
- GOOSE©
- Short Description:
GOOSE© is the only available development platform with open software interface for GNSS receivers and it can provide an own hardware solution independent from commercial receivers.
The platform is dedicated to software developers, mobile communication operators, and system developers. Four separate components characterize the platform: a multi-frequency GNSS antenna, an analogue-frontend board, a baseband board, and the processor system.
The GOOSE© Technology is licensed by Fraunhofer IIS, Germany.
- Version:
- 02.00
- Category:
- [Other]
- Conditions of Access:
- Buy
- Location:
- Not fixed
- Coordinates:
- Not fixed
- Website:
- https://teleorbit.eu/en/satnav/goose/
- Status:
- Operational
- How to get it:
Via TeleOrbit GmbH, Nuremberg

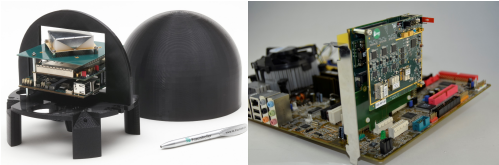

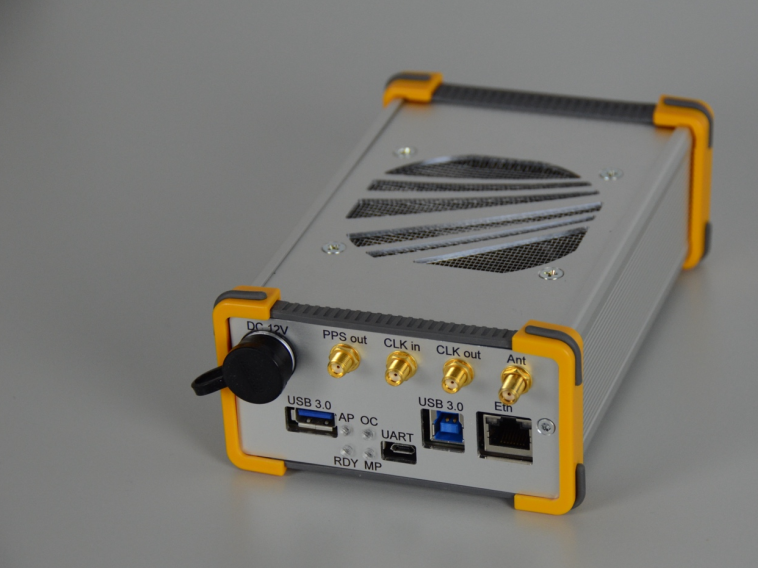

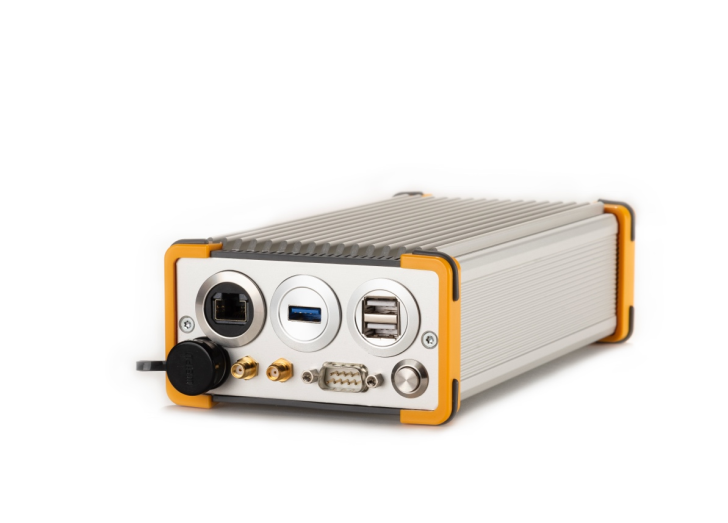

- Image:
-
Specifications
- Supported GNSS signals:
- GPS (SPS)
- GPS (PPS)
- GLONASS
- Galileo (OS, SoL, CS)
- Galileo PRS
- Supported other signals:
- MEMS
- Other
- Supported frequencies:
- L1
- L2C
- L5
- E1/L1
- E5a
- E5b
- Target users:
- Technology suppliers, developers or researchers
- Receiver (module or device) suppliers
- Application, Service or Terminal suppliers
- Environment of uses:
- Open Sky
- Urban
- Rural pedestrian user
- Rural vehicle user
- Fixed user
Contact
- Provider:
- TeleOrbit GmbH
- Jagdstr. 20, D-90419 Nuremberg, Germany
- https://teleorbit.eu/en
- POC Name:
- Mr Jürgen Seybold; +49-160 820 6957; jseybold@teleorbit.eu
Other Information
- Costs:
Configuration dependent, please contact TeleOrbit for a quotation.
- References:
TOG_GOOSE_DataSheet:
https://drive.google.com/file/d/10CUC_ynql72jZdyx99xfWlJJ-vZ9WXoz/view?usp=sharing
Open GNSS Receiver Protocol (OGRP®) documentation including parsing tool using CONVBIN from RTKLIB as RINEX converter (on demand)
