GDAS-2S™ (from Saphyrion Sagl)

Summary

Tool:
GDAS-2S™
Short Description:

Multichannel, single PLL GNSS RF streamer with high interchannel coherence. A single, optimized local oscillator, featuring ultra-low phase noise further to a specialized PLL design and the use of a high performance OCXO, is exploited to maintain the mutual coherence properties of signals coming from up to four different antennas. Particularly suited for GNSS antenna array research and applications (e.g. direction of arrival detection).

Version:
1.0
Category:
[RF Signal generator]

[Signal recorder]

[Hardware receiver or front-end]

Conditions of Access:
Buy
Location:
Bioggio (TI) - Switzerland
Coordinates:
N/A
Website:
https://saphyrion.ch/products/gnss-instruments/gdas-2s/
Status:
Operational
How to get it:

Direct contact with the manufacturer (email: contact@saphyrion.ch; phone: +41 91 220 11 00)

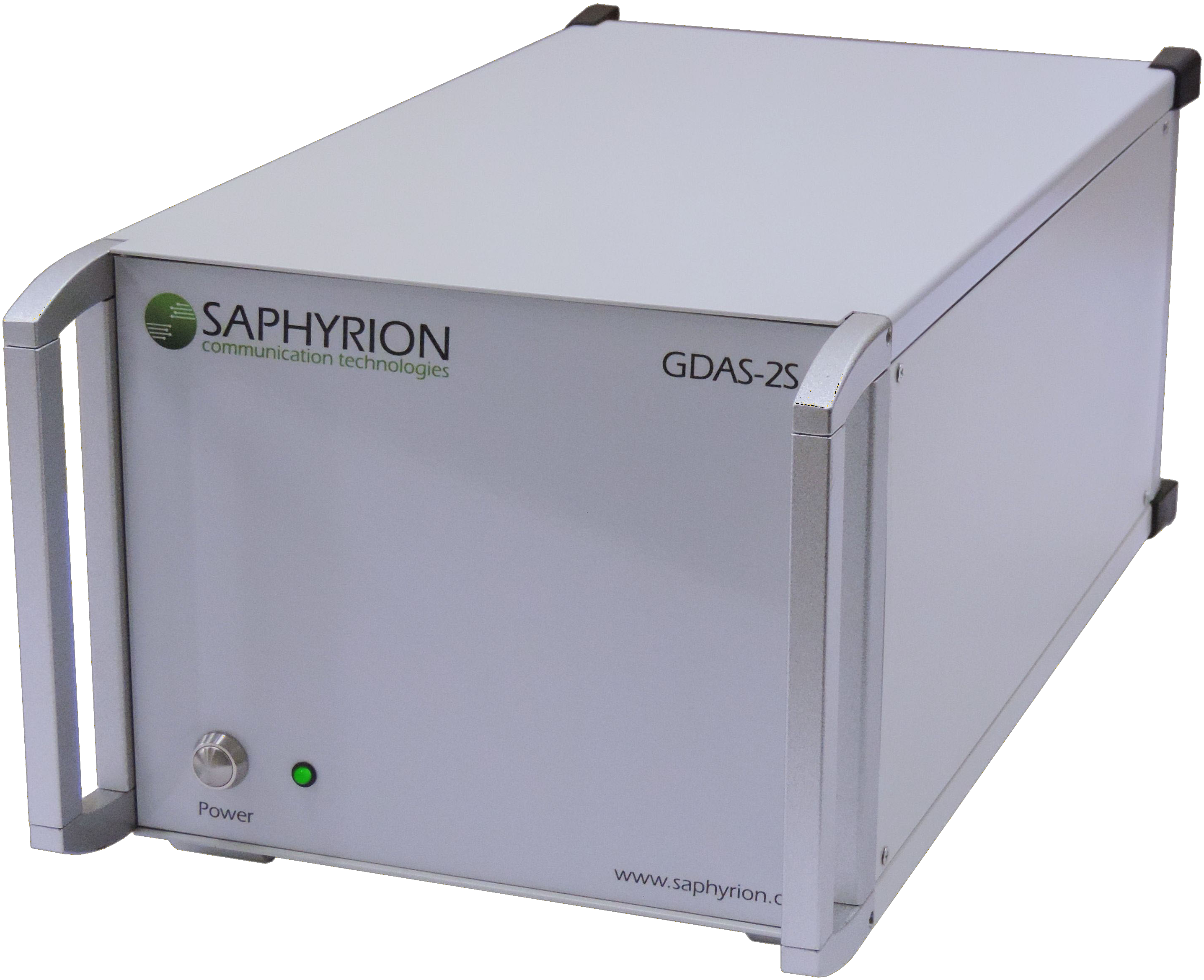

Image:

Specifications

Supported GNSS signals:
GPS (SPS)

GPS (PPS)

GLONASS

Galileo (OS, SoL, CS)

Galileo PRS

Supported other signals:
N/A
Supported frequencies:
L1

L2

L2C

L5

E1/L1

E5a

E5b

E6

Target users:
Technology suppliers, developers or researchers

Environment of uses:
Open Sky

Urban

Fixed user

Aeronautical user

Contact

Provider:
Saphyrion Sagl

Strada Regina 16, 6934 Bióggio, Switzerland

https://www.saphyrion.ch
POC Name:
Mr. Mariano Perna (email: mariano.perna@saphyrion.ch; phone: +41 91 220 11 02)

Other Information

Costs:

Depending on configuration

References:

https://saphyrion.ch/products/gnss-instruments/gdas-2s/



(in the “Download” section)
